Specification

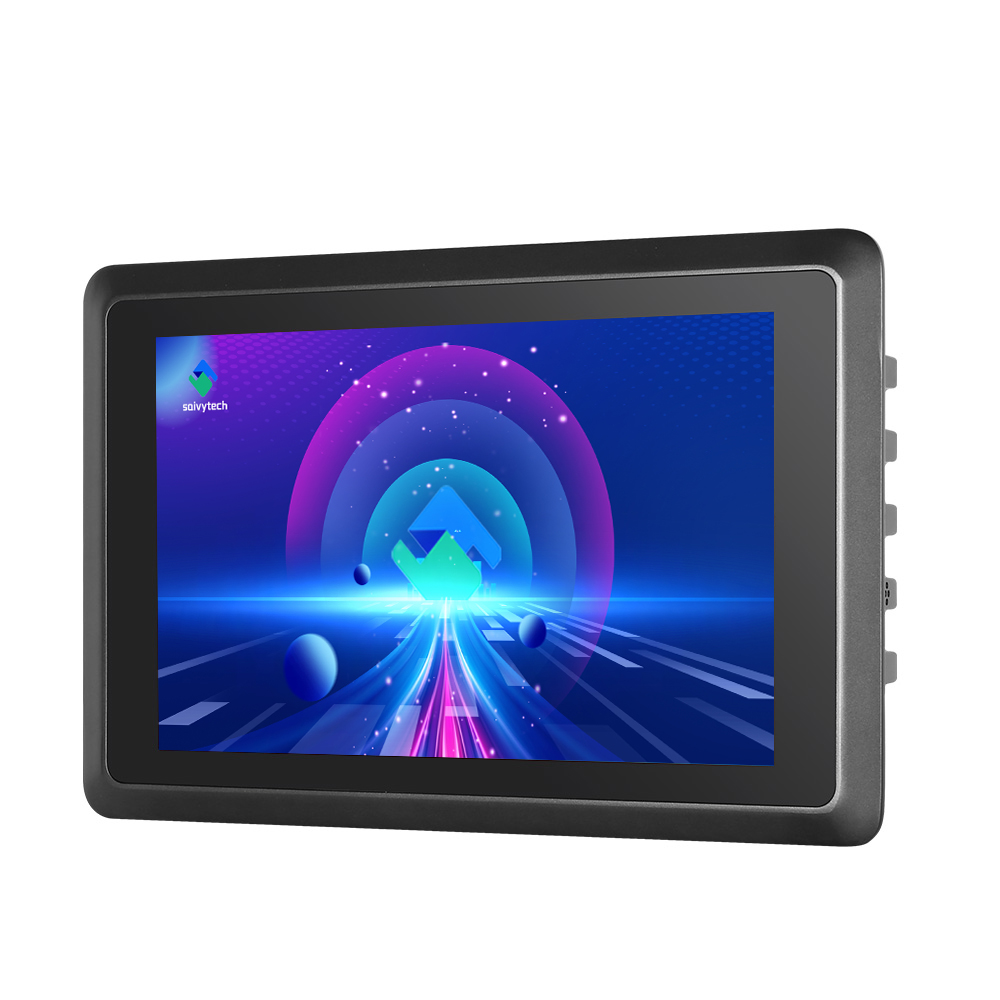

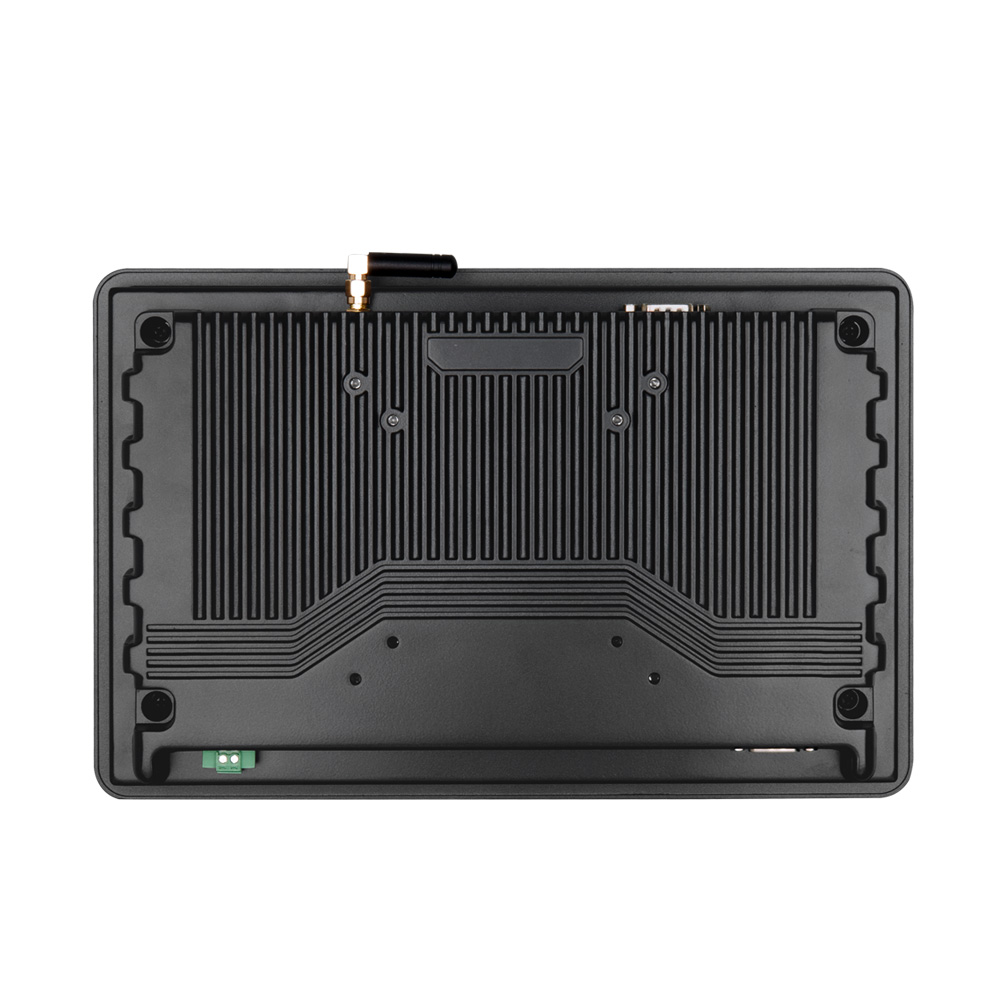

Model Name: STI-101CTPCW-08 RK3399
- RK3399 industrial grade motherboard;
- Standard Android 7.1, Upgradeable Android9.0/11/Ubuntu18.04/Debian10.0/inux4.4+QT;
- 4+32GB Standard configuration;
- Industrial grade LCD panel, perfect quality and wide viewing angles, 24/7 long time running;
- Durable mechanical design,Can be used in harsh environments;
- PCAP can meet Wet&Glove Touch function;
- The Optical Bonding function can be customized;
- Glass surface treatment AR/AF/AG optional, The surface hardness of glass can reach MoHs 7;
- Wide temperature design, durable design,High reliability test, stable quality;
- IP rating for water proof and dust proof;
- Increase LCM brightness to 1200 nits using an option enhancement(customized solution);
- Customization service available;
Specifications | |||||||||
LCD Panel | PC System | ||||||||
IP rating | IP65 front/IP40 back | Motherboard type | Industrial mainboard | ||||||
Screen Size | 10.1″ | RK3399 DuaCore Cortex-A72 1.8GHz+ Quad-Core Cortex-A53 1.4GHz Support HDMI 4K | |||||||
Active Display Area(mm) | 217.6(W)×136.3(H) | ||||||||
Pixel Pitch(mm) | 0.1695×0.1695 mm (H×V) | Memory | DDR3-4GB | ||||||
Display Resolution(pixel) | 1280(RGB)×800, WXGA | Storage | eMMC-32GB | ||||||
Color Numbers | 16.7M | Network | 1000Mbits,WIFI2.4,BT5.0 | ||||||
Brightness | 400nits | OS | Supports Android 7.1 | ||||||
Contrast Ratio | 1300:1 (Typ.) (TM) | ||||||||
Response Time(Typ.Tr+Tf) | 25 (Typ.)(Tr+Td) | Power | |||||||
Viewing Angles(CR=10) | 85/85/85/85 (Typ.) | Power Input | DC 12V | ||||||
Backlight / Lifetime (hours) | LED / 50,000H | Working current | <3A | ||||||
Power Consumption | <15W | ||||||||
Touch Panel | |||||||||

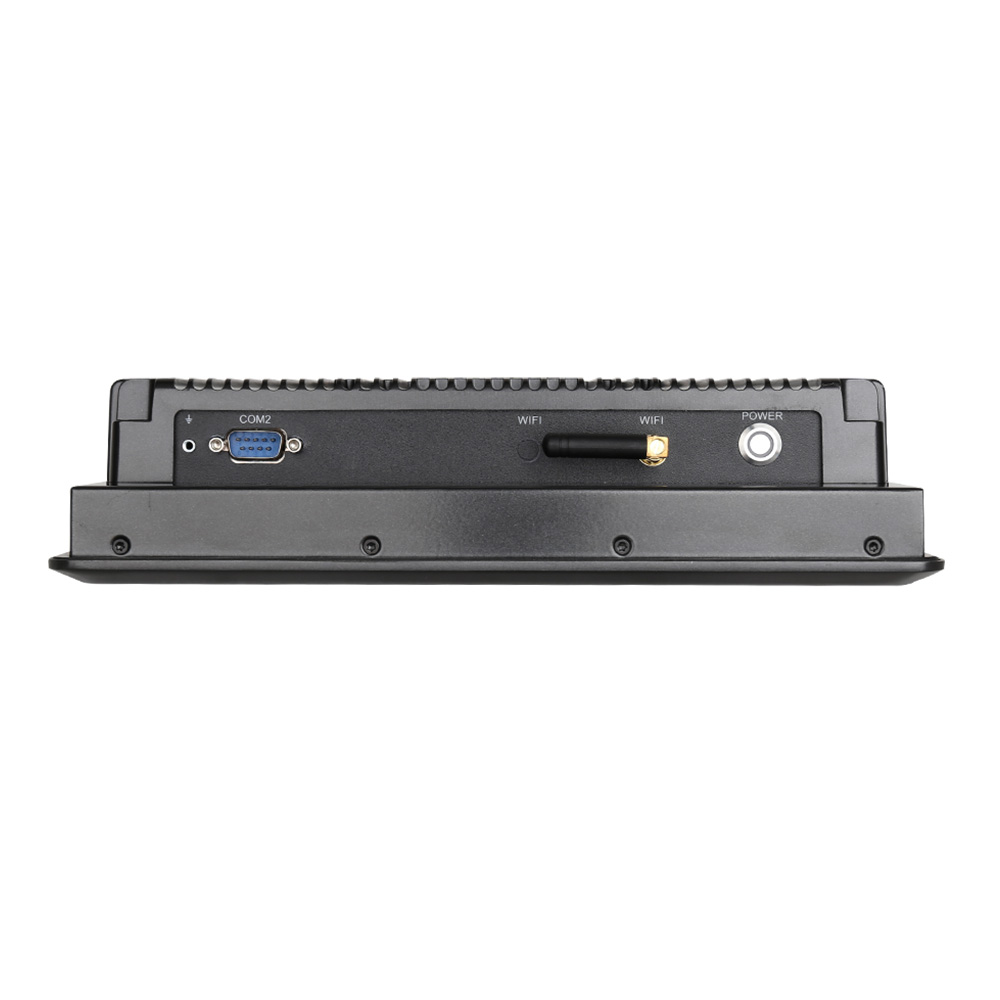

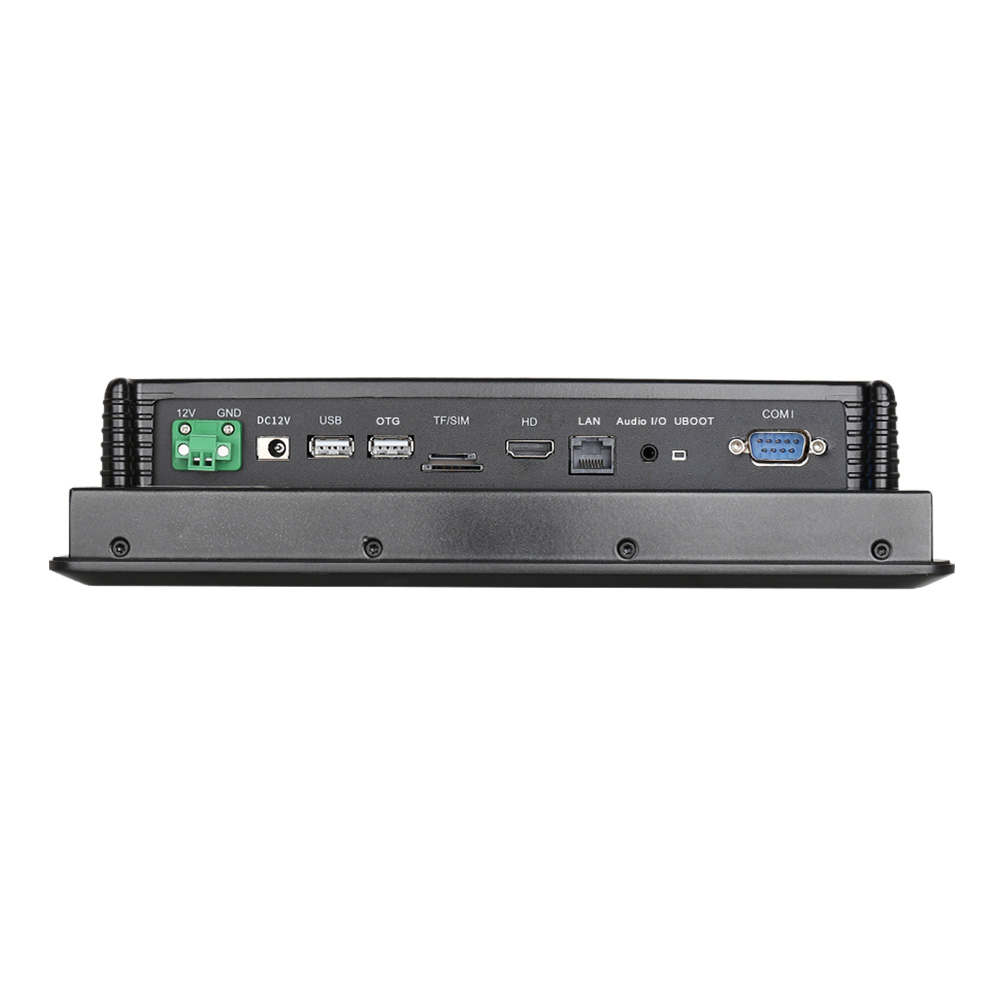

Touch Screen | PCAP Touch(10 points) | External Connectors | |||||||
Touch Controller | USB | 1x DC input | |||||||
Touch Life (Contacts) | ≥5,000,000 | 1x Wifi antenna connector | |||||||
Tempered glass | Yes(AG/AF/AR Optional) | 1x COM RS232 | |||||||
1x Audio I/O | |||||||||
Operation /Mechanical | 1x HDMI | ||||||||
Operating Temperature | -10~60℃ | 2x USB 2.0 | |||||||
Storage Temperature | -20~70℃ | 1x RJ45 | |||||||
Relative Humidity | 5~90(%RH) | 1x SIM Slot,1x TF Slot | |||||||
Housing Material | Aluminum | 1x OTG | |||||||

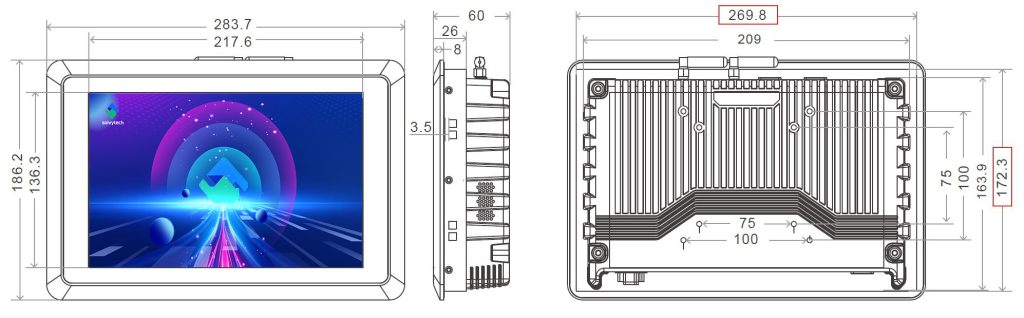

Dimension(VxHxT)mm | 283.7*186.2*60 | 1x Socket terminal | |||||||
Vase/Panel Mounting | 75*75/100*100 | ||||||||
Accessories in Package | |||||||||
Warranty | Installation Hook | ||||||||
1 Years | Power Supply |
