Specification

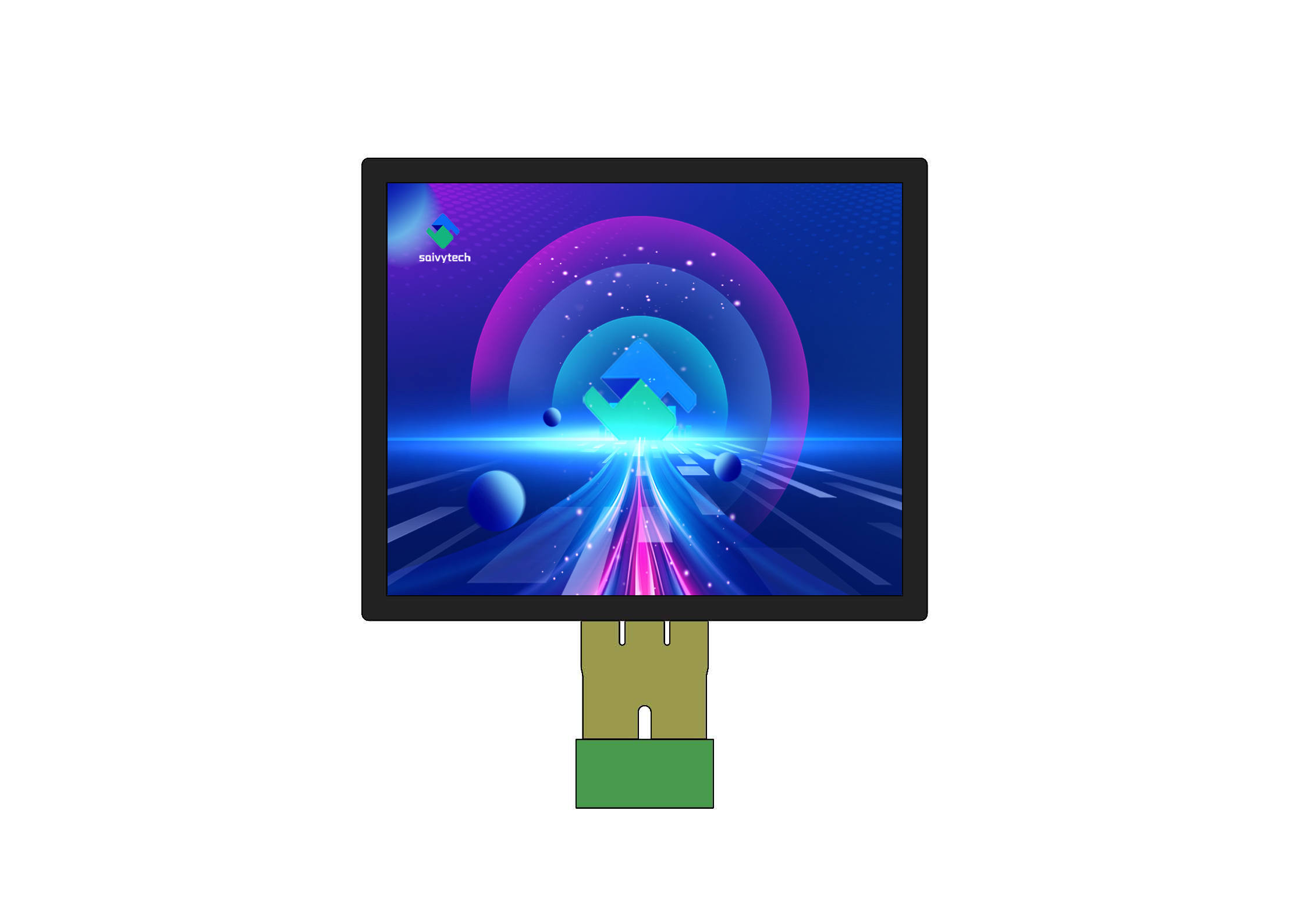

Model Name: STI-19CTMOB-W01

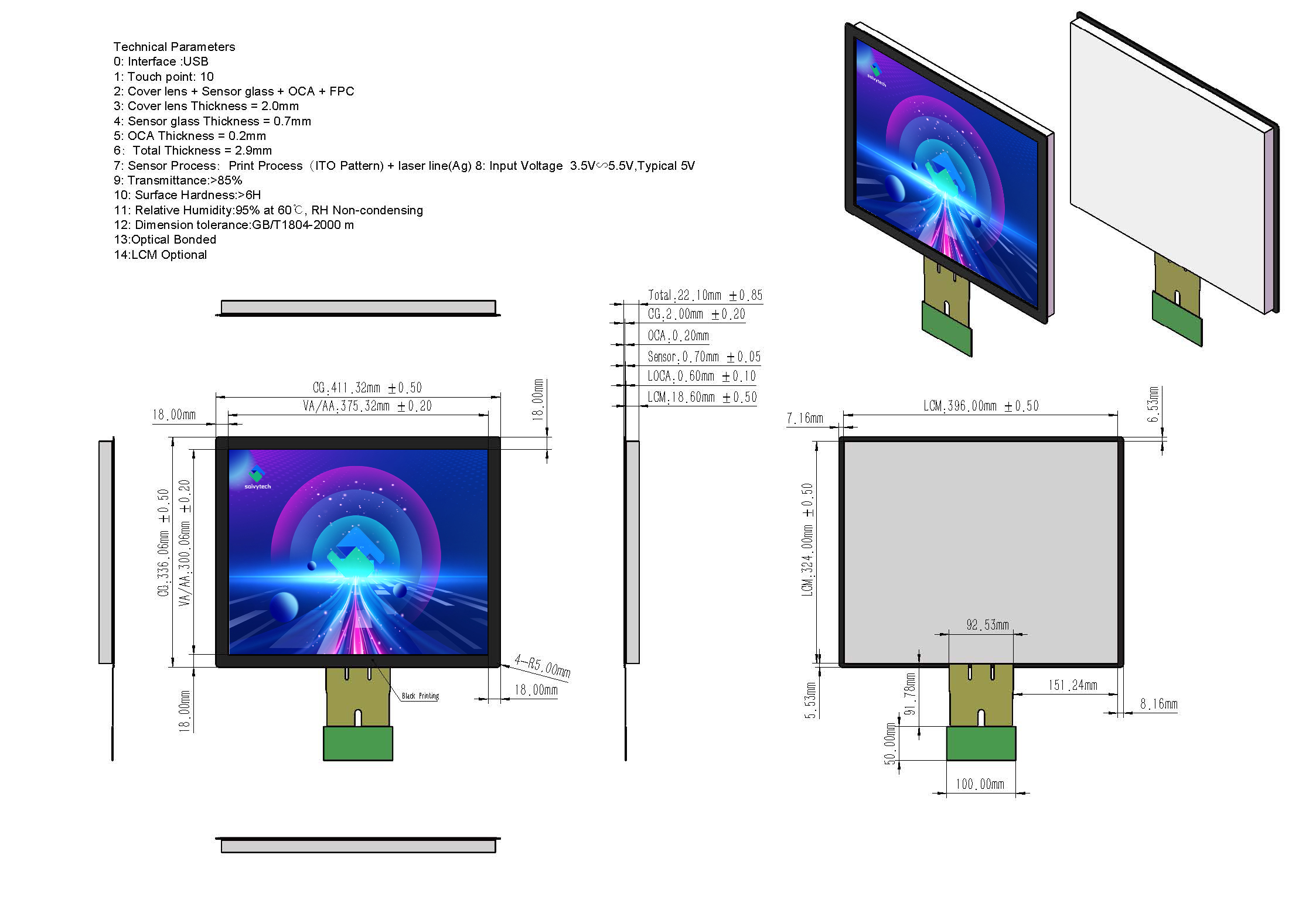

- Technical Parameters
0: Interface :USB
1: Touch point:10
2: Coverlens + Sensor glass + OCA +FPC
3: Cover lens Thickness = 2.0mm
4: Sensor glass Thickness = 0.7mm
5:OCA Thickness =0.2mm
6:Total Thickness = 2.9mm
7: Sensor Process: Print Process (ITO Pattern) + laser line(Ag) 8: Input Voltage 3.5V5.5V,Typical 5V
9:Transmittance:>85%
10: Surface Hardness:>6H
11: Relative Humidity:95% at 60C，RH Non-condensing
12:Dimension tolerance:GB/T1804-2000 m
13:Optical Bonded
14:LCM Optional
