Specification

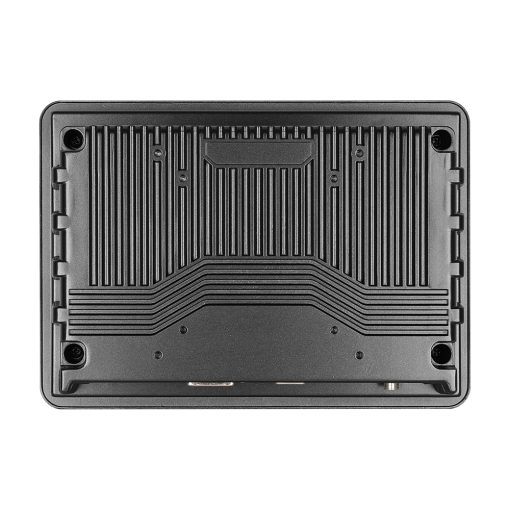

Model Name: STI-07CTM-W08
- Industrial grade LCD panel, perfect quality, wide viewing angles, 24/7 long-time running;
- Durable mechanical design can be used in harsh environments;
- PCAP can meet the Wet&Glove Touch function;
- The Optical Bonding function can be customized;
- Glass surface treatment AR/AF/AG optional, The surface hardness of glass can reach Mohs 7;
- Wide temperature design, durable design, High-reliability test, stable quality;
- Customization service available;
| Specifications | |||||||||
| LCD Panel | |||||||||
| Screen Size | 7″ | ||||||||
| IP Rating | IP65 front/IP40 back | ||||||||
| Active Display Area(mm) | 154.81(H)x86.52(V) | ||||||||
| Pixel Pitch(mm) | 0.1905×0.1905 mm [133PPI] | ||||||||
| Display Mode | TN, Normally White, Transmissive | ||||||||
| Display Resolution(pixel) | 800(RGB)×480, WVGA 133PPI | ||||||||
| Contrast Ratio | 500:1 (Typ.) (TM) | ||||||||
| Color Numbers | 16.7M | ||||||||
| Brightness | 300 cd/m² (Typ.) | ||||||||
| Backlight | LED / 30,000H | ||||||||
| Viewing Angles(CR=10) | 70/70/50/70 (Typ.) | ||||||||
| Response Time(Typ.Tr+Tf) | 10/15 (Typ.)(Tr/Td) | ||||||||
| Touch Screen | |||||||||
| Touch Screen | PCAP Touch(Multi-touch) | ||||||||
| Surface treatment | AR/AG/AF Optional | ||||||||
| Optical Bonding | Optional | ||||||||
| Tempered glass | Yes | ||||||||
| Connectors | |||||||||
| Signal Connector | HDMI&VGA&DVI | ||||||||
| Power | |||||||||
| Power Input | DC 12V(12-24V/9-36V Optional） | ||||||||
| Operation /Mechanical | |||||||||
| Dimension(VxHxT)mm | 225.04×160.7×59 | ||||||||
| Operating Temperature | -10~60℃ | ||||||||
| Storage Temperature | -20~70℃ | ||||||||
| Relative Humidity | 5~90(%RH)(non-condensation) | ||||||||
| Housing Material | Front with Aluminum Back with Aluminum | ||||||||
| Vase Mounting | VESA75*75&100*100 | ||||||||
| Power | |||||||||
| Warranty | 1 Years | ||||||||
