Specification
Model Name: STI-101CTM-W08 16:9
- Industrial grade LCD panel, perfect quality, wide viewing angles, 24/7 long-time running;
- Durable mechanical design can be used in harsh environments;
- PCAP can meet the Wet&Glove Touch function;
- The Optical Bonding function can be customized;
- Glass surface treatment AR/AF/AG optional, The surface hardness of glass can reach Mohs 7;
- Wide temperature design, durable design, High-reliability test, stable quality;
- Customization service available;
Specifications | |||||||||
LCD Panel | |||||||||
Screen Size | 10.1″ | ||||||||
IP Rating | IP65 front/IP40 back | ||||||||
Active Display Area(mm) | 217.6(H)x135.3(V) | ||||||||
Pixel Pitch(mm) | 0.17475×0.17475 mm (H×V) [145PPI] | ||||||||
Display Mode | AAS, Normally Black, Transmissive | ||||||||
Display Resolution(pixel) | 1280(RGB)×720, WXGA 145PPI | ||||||||
Contrast Ratio | 1000:1 (Typ.) (TM) | ||||||||
Color Numbers | 16.7M | ||||||||
Brightness | 300 cd/m² (Typ.) | ||||||||
Backlight | LED / 50,000H | ||||||||
Viewing Angles(CR=10) | 85/85/85/85 (Typ.) | ||||||||
Response Time(Typ.Tr+Tf) | 10/15 (Typ.)(Tr/Td) | ||||||||
Touch Screen | |||||||||
Touch Screen | PCAP Touch(Multi-touch) | ||||||||
Surface treatment | AR/AG/AF Optional | ||||||||
Optical Bonding | Optional | ||||||||
Tempered glass | Yes | ||||||||

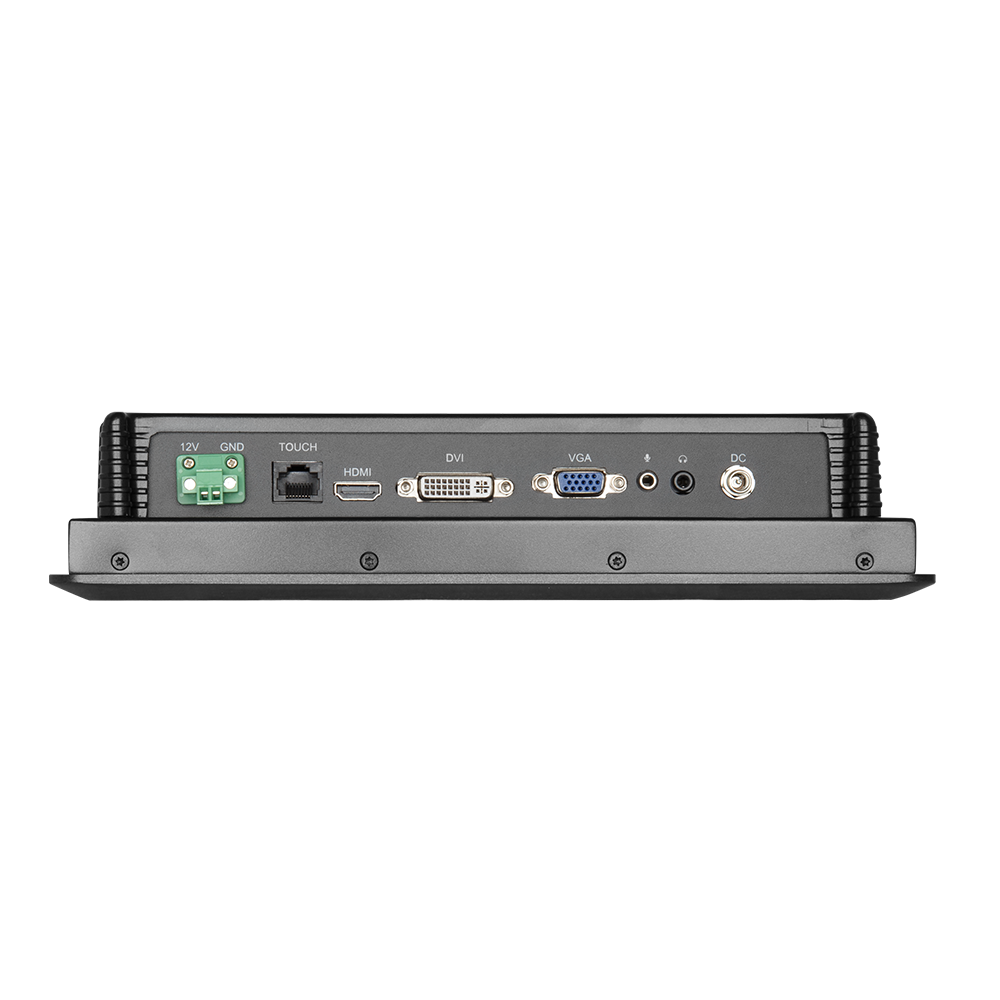

Connectors | |||||||||
Signal Connector | HDMI&VGA | ||||||||
Power | |||||||||
Power Input | DC 12V(12-24V/9-36V Optional) | ||||||||
Operation /Mechanical | |||||||||
Dimension(VxHxT)mm | 294x194x42.5 | ||||||||
Operating Temperature | -10~60℃ | ||||||||
Storage Temperature | -20~70℃ | ||||||||
Relative Humidity | 5~90(%RH)(non-condensation) | ||||||||
Housing Material | Front with Brushed Aluminum Back with Aluminum | ||||||||
Vase Mounting | VESA75*75/100*100 | ||||||||
Power | |||||||||
Warranty | 1 Years |
