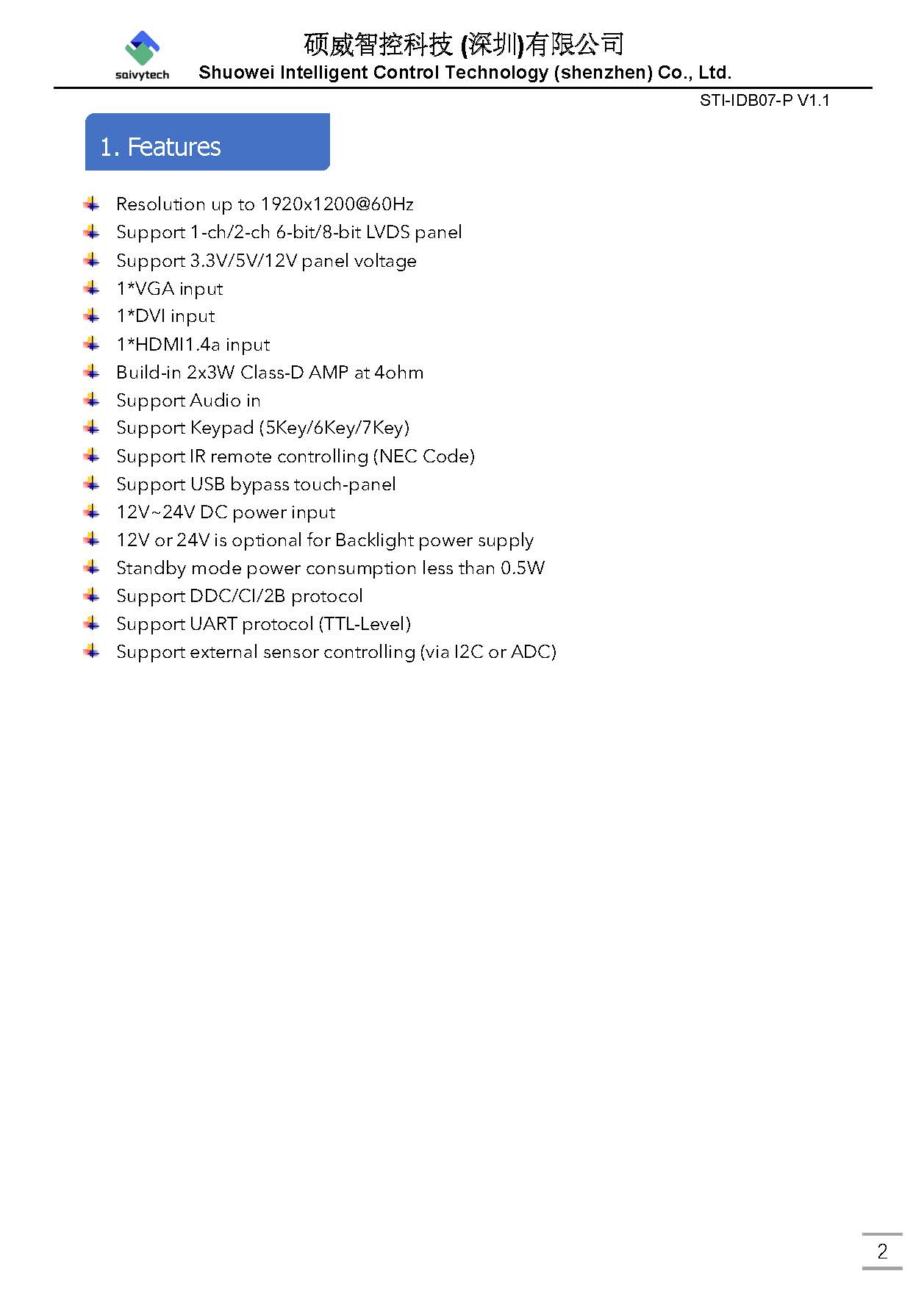

Product Features
- Resolution up to 1920×1200@60Hz
- Support 1-ch/2-ch 6-bit/8-bit LVDS panel
- Support 3.3V/5V/12V panel voltage
- 1*VGA input
- 1*DVI input
- 1*HDMI1.4a input
- Build-in 2x3W Class-D AMP at 4ohm
- Support Audio in
- Support Keypad (5Key/6Key/7Key)
- Support IR remote controlling (NEC Code) Support USB bypass touch-panel
- 12V~24V DC power input
- 12V or 24V is optional for Backlight power supply Standby mode power consumption less than 0.5W Support DDC/CI/2B protocol
- Support UART protocol (TTL-Level)
- Support external sensor controlling (via I2C or ADC)
